Crossgrip 20/20 Flat Roof Walkway System

The Ultimate Safety and Drainage Solution for Flat Roofs

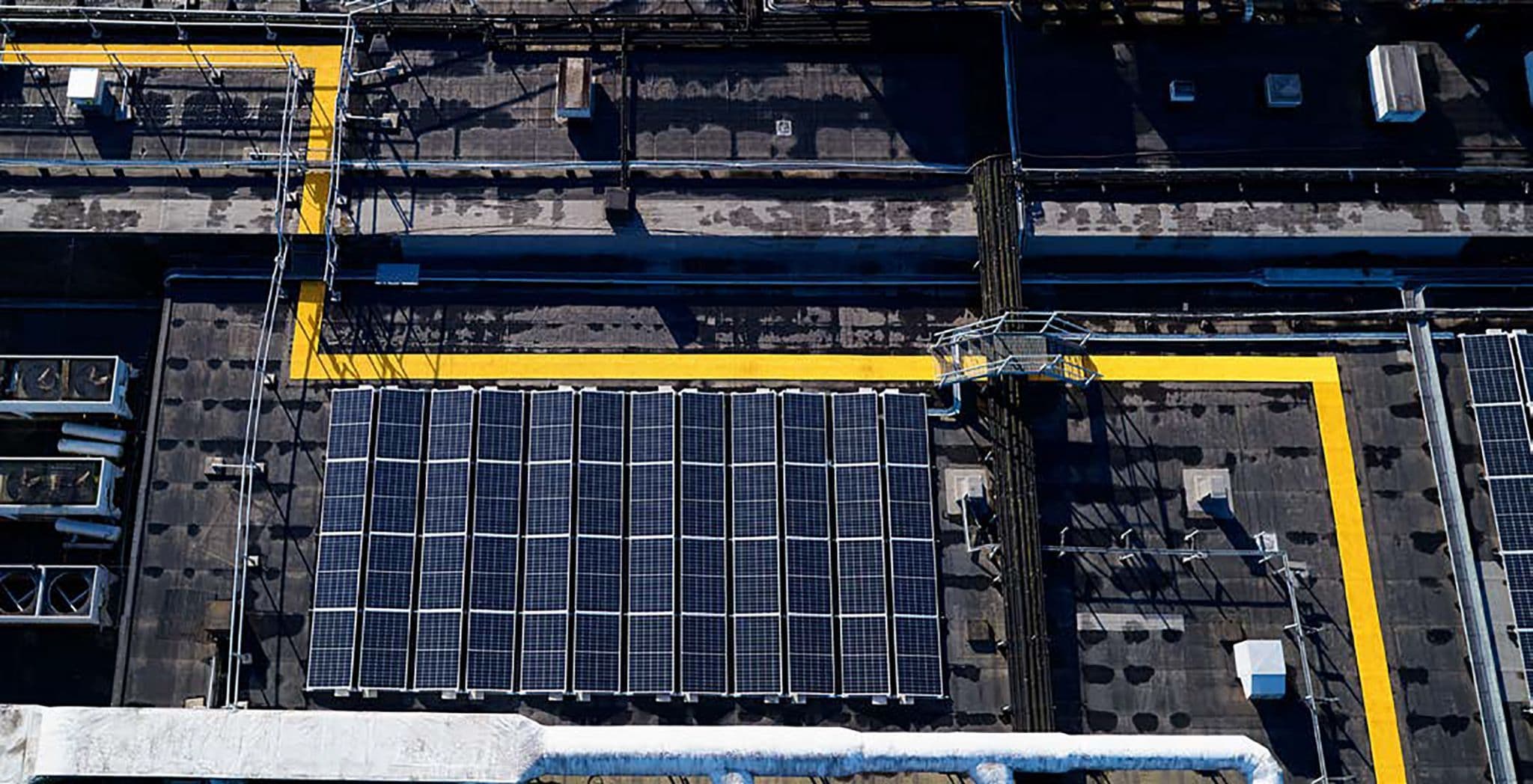

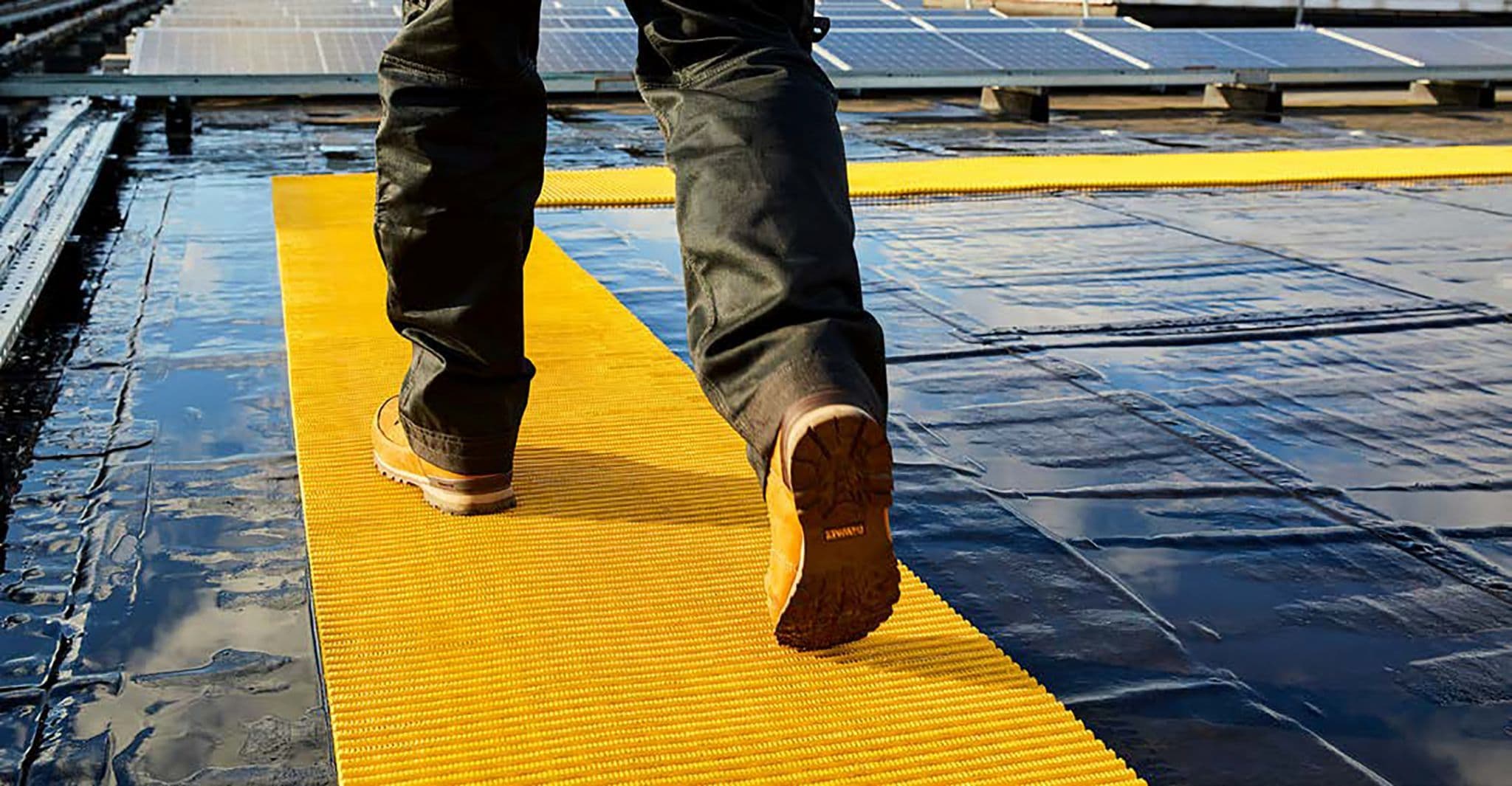

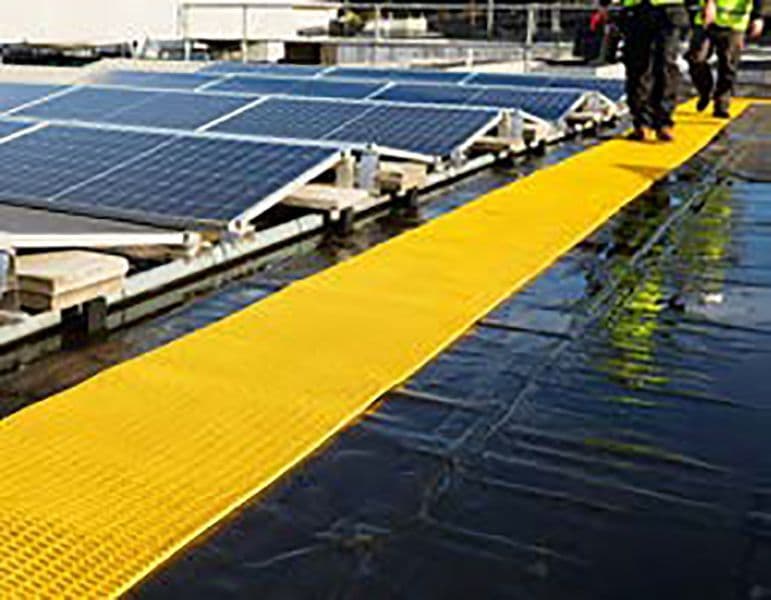

Excel Matting's Crossgrip® 20/20 is a state-of-the-art external safety walkway system specifically engineered for flat roofs. Combining the renowned features of Crossgrip with an advanced four-way drainage system, enhanced slip resistance, and an unbeatable 10-year warranty, Crossgrip® 20/20 offers unparalleled performance even in the most adverse conditions.

Superior Drainage & Enhanced Safety

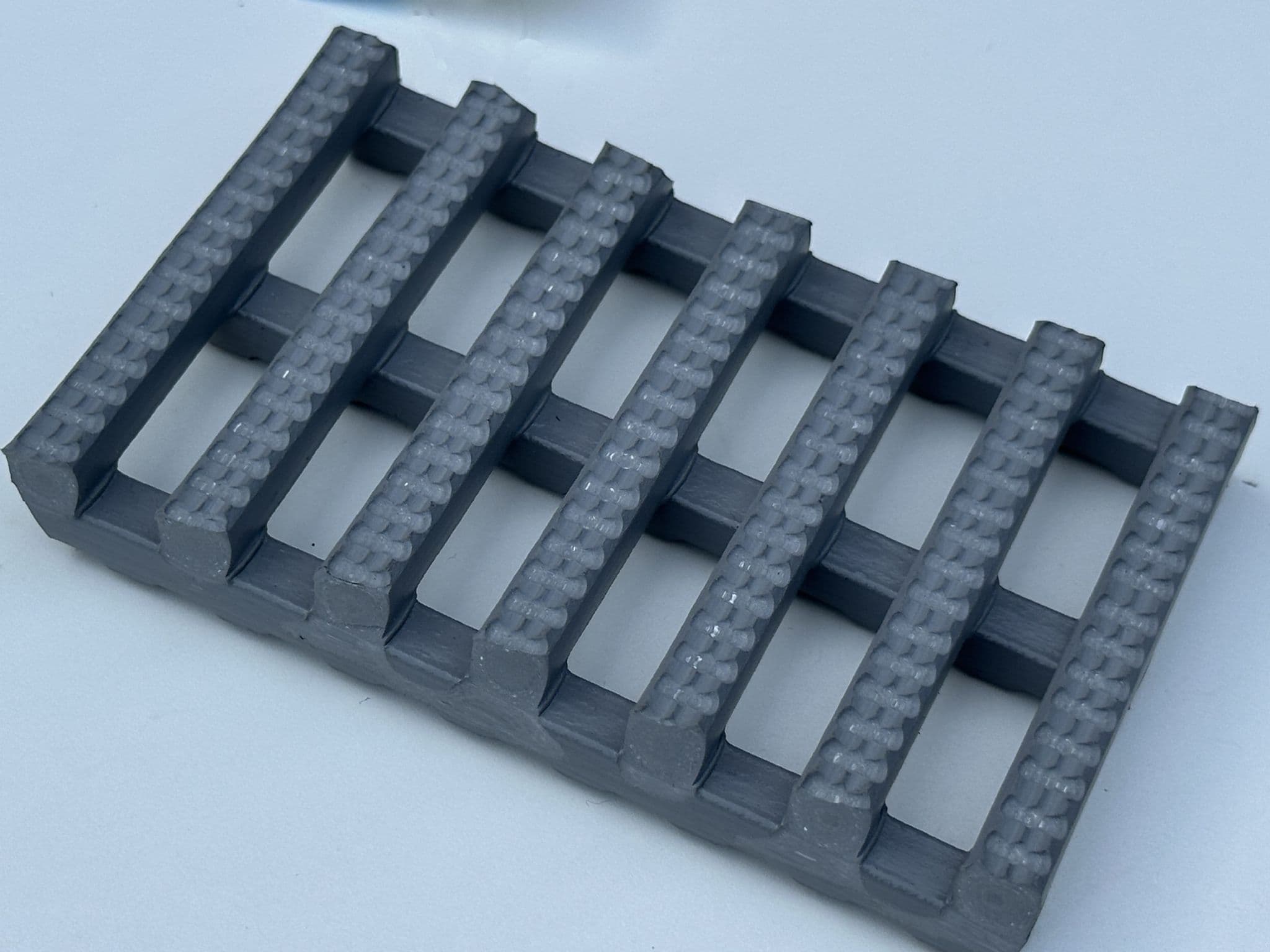

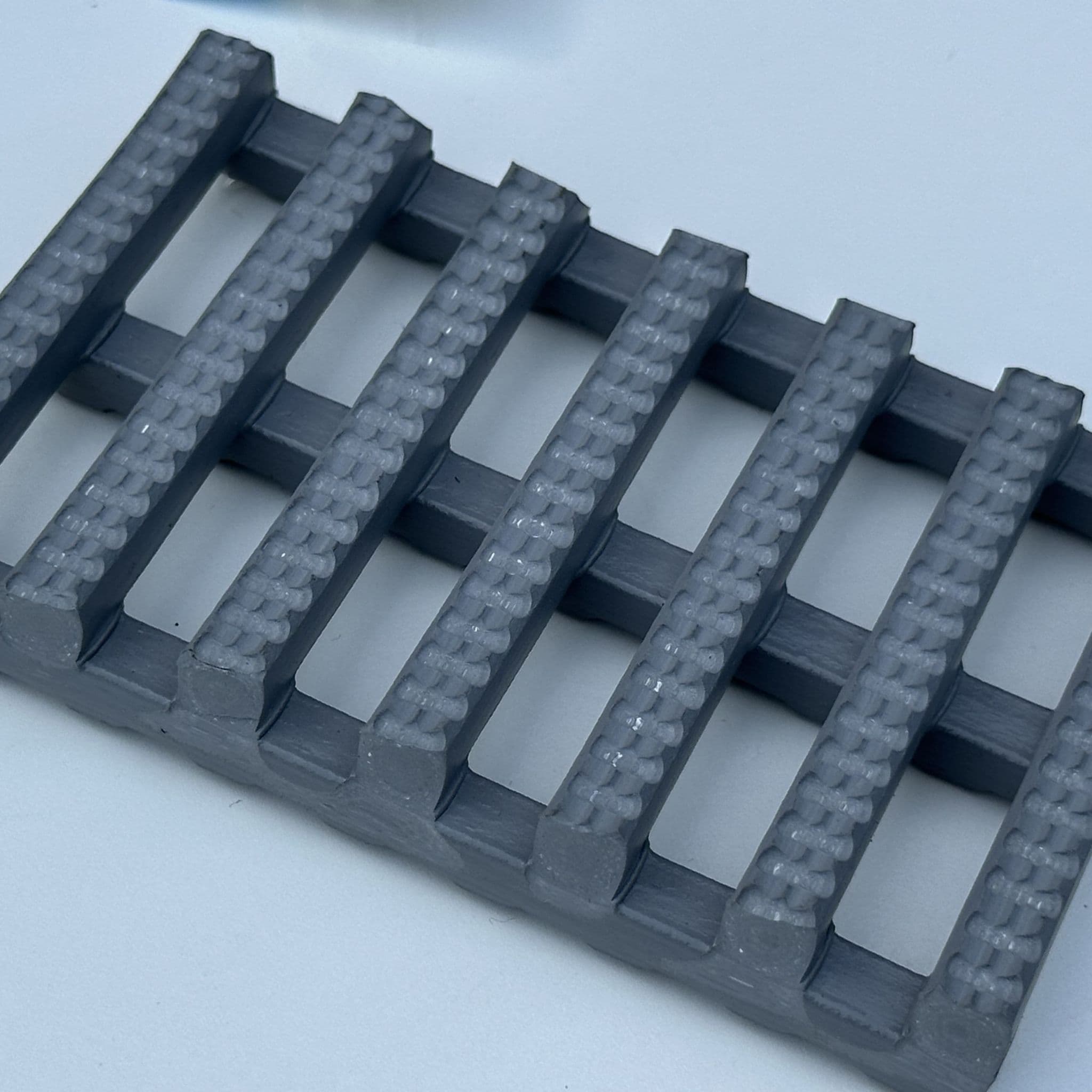

Crossgrip® 20/20 features a redesigned base bar with a superior four-way drainage system (DIN 51130: V10), efficiently managing water on your roof. The revamped top bar boasts a deeper cut, providing excellent slip resistance underfoot (DIN 51130: R11, ASTM E303 Dry/Wet). This ensures a firm grip and maximum safety for personnel accessing the roof.

Durable, Protective & Easy to Install

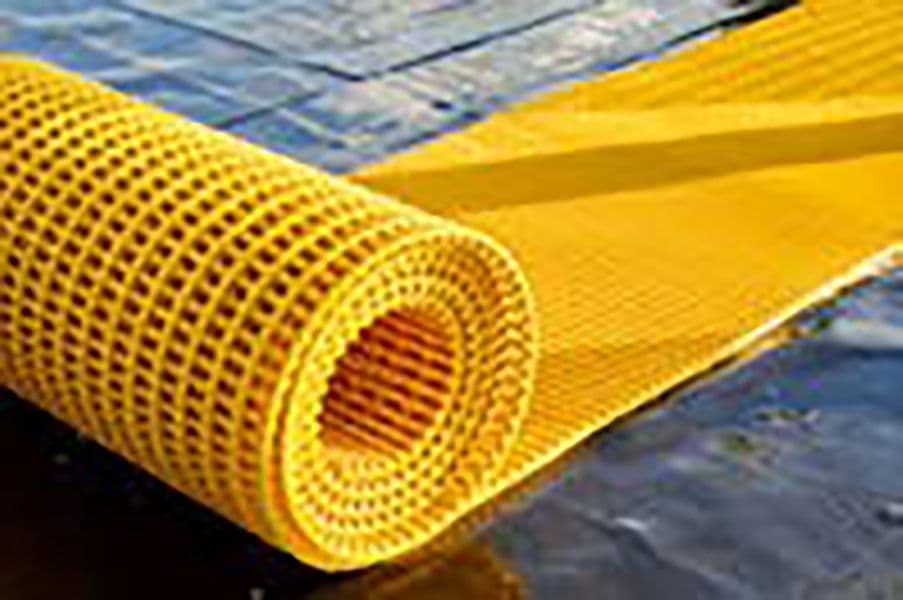

Constructed with a durable, welded two-layer design and channelled underbars, Crossgrip® 20/20 contours seamlessly to the roof structure, protecting the roof surface from potential damage. Its flexible, one-piece construction allows for loose-lay installation with no fixing required, making it quick to install and easy to move if needed. Supplied in convenient 10m rolls, it can be simply cut to fit on-site.

Unrivalled Durability & Weatherability

With improved UV weatherability and a robust 10-year warranty, Crossgrip® 20/20 is designed to withstand extreme temperatures from −23∘C to +60∘C and remain stable in winds up to 60mph (96km/h). Tests have shown stability even at wind speeds of 125mph (200 km/h) when laid flat on a stable platform. Made from non-porous, 100% recyclable, Phthalate-free PVC, it is naturally resistant to bacteria growth, most acids, alkalines, and oils.

Key Features & Benefits:

• Superior Four-Way Drainage: Redesigned base bar with DIN 51130: V10 certification for efficient water management.

• Enhanced Slip Resistance: Deep-cut pattern and cross-directional top ribs for excellent grip (DIN 51130: R11, ASTM E303 Dry/Wet).

• Roof Protection: Durable, welded construction contours to the roof structure, safeguarding the roof surface.

• Quick & Easy Installation: Loose lay, one-piece construction requires no fixing and can be cut to fit on-site.

• Exceptional Durability: Resistant to UV light, chemicals, and extreme temperatures (−23∘C to +60∘C).

• High Wind Resistance: Remains stable in winds up to 60mph (96km/h), tested up to 125mph (200 km/h).

• Long-Term Warranty: Unbeatable 10-year warranty ensures lasting performance.

• Hygienic: Made from non-porous PVC, naturally resistant to bacteria growth.

• Environmentally Friendly: 100% recyclable and Phthalate-free.

• Excellent Sound Absorption: Provides acoustic benefits.

Technical Specifications:

Standard Colours: Yellow, White, Light Grey. More colours available upon request.

Technical Information:

• Acoustic: Excellent sound absorption.

• Chemical Resistance: Resistant to most acids, alkalines, and oils.

• Composition: Flexible Polyvinyl Chloride (PVC).

• Drainage: DIN 51130: V10.

• Environment: 100% recyclable, Phthalate free, and no substances included in the SVHC list under REACH.

• Fire Rating: EN ISO 13501-1:2007 - Cfl-S1.

• Hygiene: Made from non-porous PVC that's naturally resistant to bacteria growth.

• Reversion: Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments.

• Slip Resistance:

  • DIN 51130: R11.

  • ASTM E303 Dry/Wet with lines along-lines across: 78-90/63-71.

• Thermal Range: Designed to function at temperatures from −23∘C and up to +60∘C. Slight size variation may occur at temperature extremes.

• UV Light: Resistant to PVC degradation.

• Warranty: Ten years. The product will remain functional and will not degrade in such a manner as to cause leaks in the PVC roof membrane.

• Wind Resistance: Crossgrip® 20/20 remains stable in winds up to 60mph (96km/h). Tests at PRI Construction Materials Technologies LLC in Florida showed Crossgrip® 20/20 when laid flat on a stable platform remained in position for wind speeds of 125mph (200 km/h).

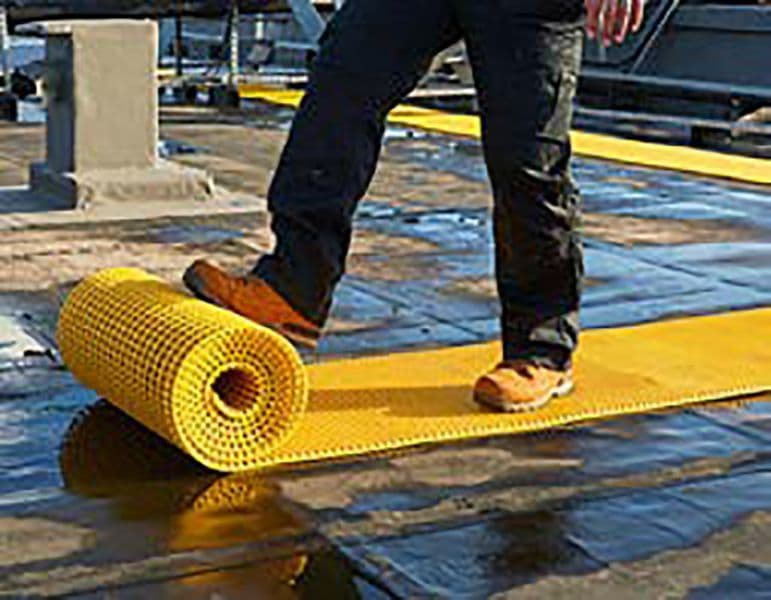

Installation: Crossgrip® 20/20's one-piece construction ensures simple installation. It is a loose-lay system, requiring no fixing. Supplied in 10m rolls, it can be easily cut to fit on-site.

Cleaning: Keeping Crossgrip® 20/20 clean is effortless. Simply lift or roll the matting to clean underneath, or clean directly with a high-pressure hose.

Components:

• PVC Edging (H: 14mm, W: 60mm): Supplied in rolls of 10.1m length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow.

• PVC Snap Track (H: 14mm): Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. One tube of cold welding paste recommended for every 10m of edging. Comes in black and dark grey.

• Connector Clips (Dual Purpose H: 14mm): For joining sections of matting together side-to-side or end-to-end. Supplied in packs of 10.
