Crossgrip PVC - Two-Layer Roof Walkway Matting

Crossgrip PVC is a highly specialised two-layer roof walkway matting designed for safety and comfort underfoot on flat roofs, gantries, and high-level walkways. Certified slip resistant, this matting is able to withstand all types of weather conditions.

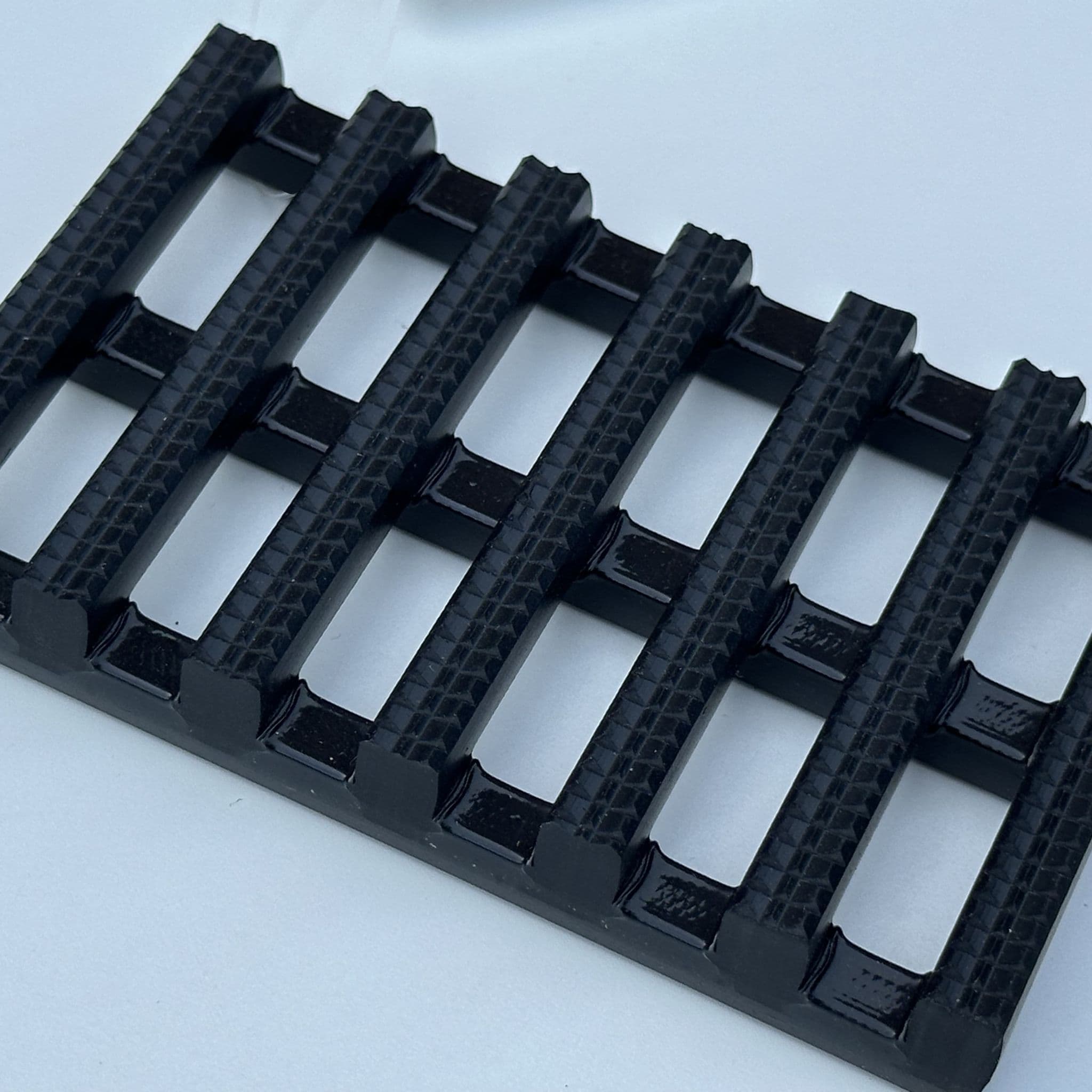

Made from flexible PVC, Crossgrip PVC is designed to be loose laid with no fixing required, allowing for quick and easy installation, even in adverse weather conditions. Its durable, two-layer construction contours to the roof structure, protecting the membrane, while the diamond-cut pattern and cross-directional top ribs ensure a firm underfoot grip. This matting remains stable in winds up to 96km/h (60mph).

Features

• Diamond-cut pattern

• Two-layer construction

• Flexible, one-piece construction

• Loose lay, no fixing required

• Supplied in 10m rolls

Benefits

• Certified slip resistance (DIN 51130: R10, ASTM 1677: 1.0/0.9)

• Excellent drainage (DIN 51130:V10)

• Contours over fittings

• Stable in winds up to 96km/h (60mph)

• Quick to install

Technical Information

• Product: Crossgrip PVC

• Height: 14mm

Standard Roll Options:

• 10 x 0.6m

• 10 x 0.91m

• 10 x 1.22m

• Weight: 6.6 kg/m²

• Tolerances (All dimensions are nominal):

  • Height: 14mm (+/-0.5mm)

  • Length: 10m (0 + 0.3m)

  • Width: 60 cm, 91 cm, 122 cm (+/-1cm)

• Acoustic: Excellent sound absorption

• Chemical Resistance: Resistant to most acids, alkalines, and oils.

• Composition: Flexible Polyvinyl Chloride (PVC).

• Drainage: DIN 51130 V10.

• Environment: 100% recyclable. When manufactured in black, it's made using post-industrial recycled material (averages at least 30%, strives for 100%). Phthalate free and does not use any substances on the SVHC list under REACH.

• Fire: EN ISO 13501-1:2007-Cfl-S1.

• Hygiene: Made from non-porous PVC that's naturally resistant to bacteria growth.

• Reversion: Thermoplastic shrinkage can result in size reductions up to 2%, which may be accelerated in hot environments.

• Slip resistance: ASTM F 1677-Dry/Wet: 1.0/0.9; DIN 51130: R10.

• Thermal: Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes.

• UV light: Resistant to PVC degradation.

• Wind resistance: When loose laid, Crossgrip PVC can withstand winds up to 60mph (96 km/h). In laboratory conditions, it remained stable in wind speeds up to 94mph (150 km/h).

• Warranty: Five years.

Installation

Crossgrip PVC's one-piece construction means installation is simple. It can be loose laid with no fixing required. The durable, one-piece construction is supplied in 10m rolls, which can simply be cut to fit on site and contours to the roof structure.

Cleaning

Keeping Crossgrip PVC looking good is easy. You can simply lift or roll the matting to clean it, and it's easy to clean with a high-pressure hose.


Available Colours​​​​​​​

• Light grey

• Black

• Yellow

• More colours available upon request.​​​​​​

Ancillaries​​​​​​​

• PVC edging (H: 14mm, W: 60mm): Supplied in rolls of 10.1m length with cold welding paste. Comes in black, dark grey, dark brown, holly green, Oxford blue, and yellow. Size: 14mm x 60mm x 10.1m.​​​​​​​

• PVC edging (H: 14mm, W: 100mm): Supplied in rolls of 10.1m length with cold welding paste. Comes in black, dark grey, and yellow. Size: 14mm x 100mm x 10.1m.​​​​​

• Aluminium edging (H: 14mm): Supplied in sections of 2m length with fixing screws and plugs. Comes in anodised aluminium, powder coated yellow. Size: 15mm x 45mm x 2m.​​​​​

• PVC snap track (H: 14mm): Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. Comes in black and dark grey. Size: 14mm x 2.5m.​​​

• Connector clips side-to-end (H: 14mm): For joining sections of matting together side-to-end. Supplied in packs of 10.​​​​​​​

• Connector clips dual purpose (H: 14mm): For joining sections of matting together side-to-side or end-to-end. Supplied in packs of 10.​​​​​​​

• Small floor hook (H: 14mm): For securing sections of the matting to the floor. Supplied in packs of 20 with screws and plugs.
